EN3 MINI WEATHERTIGHT CONNECTOR SERIES
42
CONNECTORS & RECEPTACLES
?
PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

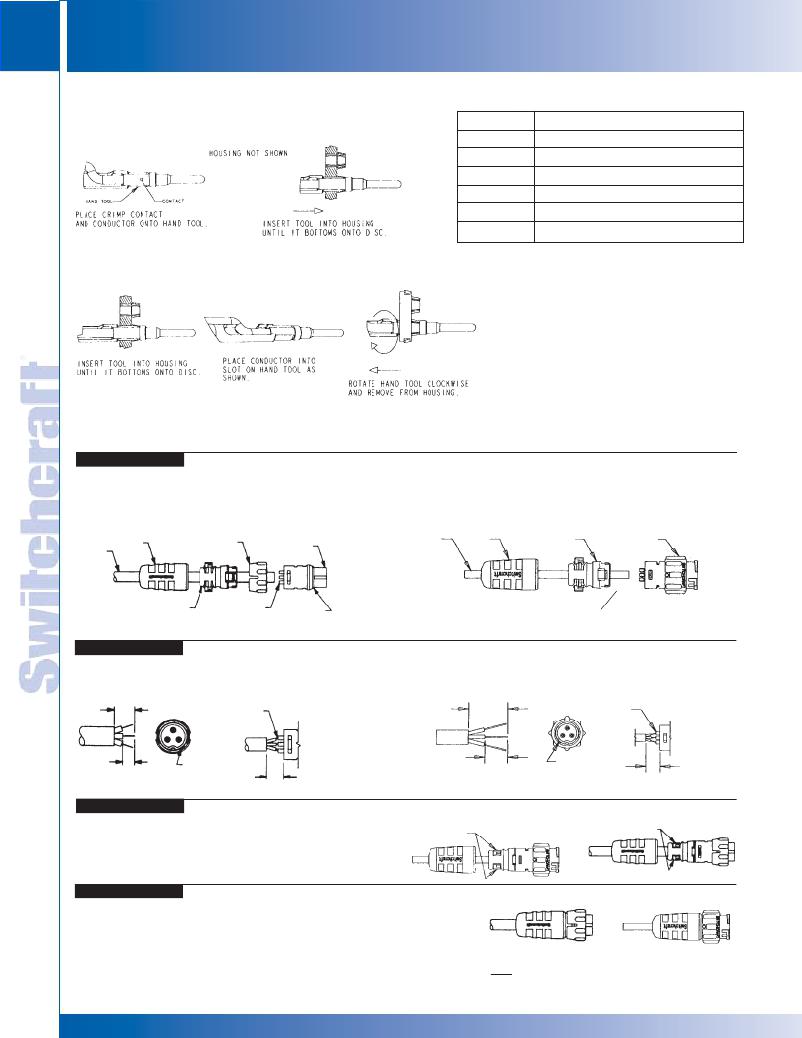

CRIMP CONTACT
CRIMP TOOLS
INSERTION INSTRUCTIONS
Part Number
EN3INS16
EN3INS20
EN3CR
EN3CRAUTO
EN3POS16
EN3POS20
Tool Description
Insertion/Extraction Tool for 16 AWG
Insertion/Extraction Tool for 20 AWG
Crimp Hand Tool
Pneumatic Crimp Tool
Positioner for 16 AWG contacts and pins
Positioner for 20 AWG contacts and pins
CRIMP CONTACT
EXTRACTION INSTRUCTIONS
NOTE: A positioner must be used with the
EN3CR and EN3CRAUTO.
Note: Solder and PC contacts are factory assembled
CORD CONNECTOR ASSEMBLY INSTRUCTIONS
STEP 1
Cord Connector: To assemble the three-part cord connector, first feed the end of the cable through the boot, cable clamp
housing, and coupling ring in that order and position as shown in the figure below. NOTE: The coupling ring can also be
inserted onto the cord connector from the front. In-line Connector: Feed the end of the cable through the boot and cable
clamp housing in the order and position shown.
IN-LINE
CABLE
BOOT
COUPLING
RING
CORD
CONNECTOR
CABLE
BOOT
CABLE CLAMP
HOUSING
CONNECTOR
CABLE CLAMP
HOUSING
CONTACT PINS
O-RING
(MOLDED ONTO
CONTACT PINS
CORD CONNECTOR)
STEP 2
Next, strip the cable .218" as shown and begin soldering conductors to pins, or insert contacts crimped on wire starting
with contact #1 next to the "notch" and following with the remaining conductors counter-clockwise with #6 or #8 conductor
in the center.
3/8"
MAX.
7/32"
SOLDER
NOTCH (PIN #1
INDICATOR)
CORD
CONNECTOR
9/32"
3/8"
MAX.
7/32"
SOLDER
NOTCH (PIN #1
INDICATOR)
IN-LINE
CONNECTOR
9/32"
STEP 3
Push the cable clamp housing forward until it locks
into the connector body and snap the two clamps
into their compartments.
CORD CONNECTOR
CABLE CLAMPS
IN-LINE CONNECTOR
CABLE CLAMPS
STEP 4
CORD CONNECTOR
IN-LINE CONNECTOR
Finally, push the boot all the way forward to seat tightly
onto the cable clamp housing.
Remember: Cord connectors will not mate with each other. For cord-to-cord connection,
your customer must order a cord connector plus an in-line connector.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
www.switchcraft.com
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
